2017年ADELsystem工廠上海航歐中國區(qū)銷售
ADELSYSTEM開關電源、ADELSYSTEMADELSYSTEM電源供應器、ADELSYSTEM模塊、ADELSYSTEM接口
2017年ADEL system工廠上海航歐中國區(qū)銷售
意大利ADEL SYSTEM開關電源SCE12ADELSYSTEM電源、ADELSYSTEM開關電源
意大利ADEL SYSTEM開關電源SCE12ADELSYSTEM電源、ADELSYSTEM開關電源、ADEL SYSTEM、ADEL SYSTEM電源供應器、ADELSYSTEM模塊、ADEL SYSTEM接口
主要型號：
DFLEX
Switching power supplies – Input 115–230 Vac
DFX1512A???????? Switching Power supply Output: 12Vdc 1A Input: 115 – 230 Vac???? D/P
DFX4512A???????? Switching Power supply Output: 12Vdc 3A Input: 115 – 230 Vac???? D/P
DFX6012A???????? Switching Power supply Output: 12Vdc 6A Input: 115 – 230 Vac???? D/P
DFX1524A???????? Switching Power supply Output: 24Vdc 0.5A Input: 115 – 230 Vac D/P
DFX4524A???????? Switching Power supply Output: 24Vdc 1.75A Input: 115 – 230 Vac??????? D/P
DFX6024A???????? Switching Power supply Output: 24Vdc 3A Input: 115 – 230 Vac???? D/P
FLEX
Switching power supplies – Input 115–230 Vac
FLEX6005A?????? Switching Power supply Output: 5Vdc 5A Input: 115 – 230 Vac?????? D
Switching power supplies – Input 115–230 Vac
FLEX6012A?????? Switching Power supply Output: 12Vdc 6A Input: 230 Vac????? D
FLEX17012A???? Switching Power supply Output: 12Vdc 14A Input: 230 Vac??? D
FLEX28012A???? Switching Power supply Output: 12Vdc 20A Input: 230 Vac??? D
Switching power supplies – Input 115–230 Vac
FLEX6024A?????? Switching Power supply Output: 24Vdc 3A Input: 115 – 230 Vac???? D

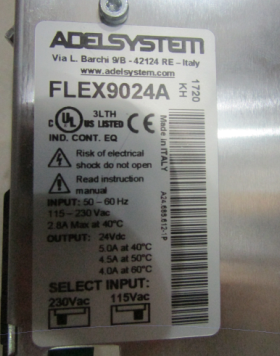

FLEX9024A?????? Switching Power supply Output: 24Vdc 5A Input: 115 – 230 Vac???? D
FLEX17024A???? Switching Power supply Output: 24Vdc 7,5A Input: 115 – 230 Vac D
FLEX28024A???? Switching Power supply Output: 24Vdc 14A Input: 115 – 230 Vac?? D
FLEX50024A???? Switching Power supply Output: 24Vdc 25A Input: 115 – 230 Vac?? D
Switching power supplies – Input 230-400–500 Vac 2 and 3 Phase
FLEX9024B?????? Switching Power supply Output: 24Vdc 5A (2 Phase)????? D
FLEX17024B???? Switching Power supply Output: 24Vdc 7,5A (2 Phase)?? D
FLEX28024B???? Switching Power supply Output: 24Vdc 14A (2 Phase)??? D
FLEX50024B???? Switching Power supply Output: 24Vdc 25A (3 Phase)??? D
Switching power supplies – Input 115–230 Vac
FLEX17048A???? Switching Power supply Output: 48Vdc 3,8 A Input: 115 – 230 Vac????????? D
FLEX28048A???? Switching Power supply Output: 48Vdc 7,5 A Input: 115 – 230 Vac????????? D
FLEX50048A???? Switching Power supply Output: 48Vdc 12,5 A Input: 115 – 230 Vac?????? D
PST
Switching power supplies – Input 400–480 Vac 3-Phase
PST2440B???????? Switching Power supply Output: 24Vdc 40A??? D
“PST series” Switching power supplies – Input 400–480 Vac 3-Phase (Driver Applications)
PST4810B???????? Switching Power supply Output: 48Vdc 10A – 35A max. D
SW
AC / DC and DC / DC Converters “Not Isolated” – Low Voltage Input AC or DC? 24 V
Input: 24V
SW053LC Switching Power supply Output: 5Vdc 3 A?????? D
SW103LC Switching Power supply Output: 10Vdc 3 A???? D
SW125HP????????? Switching Power supply Output: 12Vdc 5 A???? D
SW243LC Switching Power supply Output: 24Vdc 3 A???? D
SW245HP????????? Switching Power supply Output: 24Vdc 5 A???? D
SW247HP????????? Switching Power supply Output: 24Vdc 7 A???? D
Input: 48V
SW245HP/48??? Switching Power supply Output: 24Vdc 3A – Input 48Vdc??????? D
PFAL
AC/Dc and DC/DC Converters “Not Isolated”- Low Voltage Input Ac or DC- Adjustable output Vdc +/-10%
Input: 24V
PFAL2410 Switching Power supply Output:24Vdc 10A???? D
PFAL2420 Switching Power supply Output:24Vdc 20A???? D
Input: 48V
PFAL2420/48??? Switching Power supply Output:24Vdc 15A – Input 48Vdc?????? D
Input 6-28Vac/8-39Vdc
PFALVP3?? Vout Adjustable from 1.25 – 27 Vdc? 2 A????? D
SCM
Switching power supplies – Input 115–230 Vac
SCM4012A?????? Switching Power supply Output: 12Vdc 3.5 A Input: 115 – 230 Vac????????? P
SCM7512A?????? Switching Power supply Output: 12Vdc 6.3 A Input: 115 – 230 Vac????????? P
SCM10012A???? Switching Power supply Output: 12Vdc 8.5 A Input: 115 – 230 Vac????????? P
SCM4024A?????? Switching Power supply Output: 24Vdc 1.8 A Input: 115 – 230 Vac????????? P
SCM7524A?????? Switching Power supply Output: 24Vdc 3.2 A Input: 115 – 230 Vac????????? P
SCM10024A???? Switching Power supply Output: 24Vdc 4.5 A Input: 115 – 230 Vac????????? P
Product group 2?????? DC / DC Converter
SUP
STEP-UP DC/DC Converters “Not Isolated”- Low Input Vdc- Adjustable output Vdc +/-10%
Input: 12V
SUP3-1224??????? STEP-UP Dc/Dc ing. 12V out. 24V 3A?????? D
SUP6-1224??????? STEP-UP Dc/Dc ing. 12V out. 24V 6A?????? D
Input: 12V
SUP3-1230??????? STEP-UP Dc/Dc ing. 12V out. 30V 3A?????? D
Input: 12V
SUP3-1240??????? STEP-UP Dc/Dc ing. 12V out. 40V 3A?????? D
Input: 24V
SUP3-2448??????? STEP-UP Dc/Dc ing. 24V out. 48V 3A?????? D
SUP6-2448??????? STEP-UP Dc/Dc ing. 24V out. 48V 6A?????? D
Input: 24V
SUP3-2460??????? STEP-UP Dc/Dc ing. 24V out. 60V 2,5A?? D
SUP6-2460??????? STEP-UP Dc/Dc ing. 24V out. 60V 6A?????? D
SUP ISO
DC/DC Converters “Isolated”- Low Voltage Input DC to DC – Adjustable output Vdc +/-10%
Input 12Vdc
SUP30-12/24??? Switching Power supply Input 10 – 18? Vdc Output: 24 Vdc? 1.3 A?????? P
SUP50-12/12??? Dc/Dc Converter Input 10 – 15? Vdc Output: 12 Vdc? 4.2 A (Isolated) P
SUP50-12/24??? Switching Power supply Input 10 – 18? Vdc Output: 24 Vdc? 2.1 A?????? P
Input 24Vdc
SUP30-24/24??? Switching Power supply Input 18 – 36? Vdc Output: 24 Vdc? 1.3 A?????? P
SUP50-24/24??? Switching Power supply Input 10 – 18? Vdc Output: 24 Vdc? 2.1 A?????? P
SUP70-24/24??? Switching Power supply Input 18 – 36? Vdc Output: 24 Vdc? 3 A? P
SUP100-24/24 Switching Power supply Input 18 – 36? Vdc Output: 24 Vdc? 4.2 A?????? P
SUP200-24/24 Switching Power supply Input 18 – 36? Vdc Output: 24 Vdc? 8.4 A?????? P
Input 48Vdc
SUP30-48/24??? Switching Power supply Input 36 – 72? Vdc Output: 24 Vdc? 1.3 A?????? P
SUP70-48/24??? Switching Power supply Input 36- 72? Vdc Output: 24 Vdc? 3 A?? P
SUP150-48/24 Switching Power supply Input 36 – 72? Vdc Output: 24 Vdc? 6.3 A?????? P
SUP200-48/24 Switching Power supply Input 36 – 72? Vdc Output: 24 Vdc? 8.4 A?????? P
SUP200-48/12 Switching Power supply Input 36 – 72? Vdc Output: 12 Vdc? 16.7 A??????? P
DINSUP??? Support for Din Rail “SUP Line”??????? D
Product group 3?????? DC-UPS
CBI
DC-UPS –? ALL IN ONE? =? Battery Charger + Continuity BackUp Module + Power Supply in one unit
Input 115-230-270 Vac
CBI123A? DC-UPS Out 12 Vdc 3A In 115-230-270 Vac, no NiCd battery, with Temperature Compensation? D
CBI123A-NiCd DC-UPS Out 12 Vdc 3A In 115-230-270 Vac, NiCd battery enabled, no Temperature Compensation???? D
CBI126A? DC-UPS Out 12 Vdc 6A In 115-230-270 Vac, no NiCd battery, with Temperature Compensation? D
CBI126A-NiCd DC-UPS Out 12 Vdc 6A In 115-230-270 Vac, NiCd battery enabled, no Temperature Compensation???? D
CBI1210A???????? DC-UPS Out 12 Vdc 10A In 115-230-270 Vac, no NiCd battery, with Temperature Compensation???????? D
CBI1210A-NiCd??????? DC-UPS Out 12 Vdc 10A In 115-230-270 Vac, NiCd battery enabled, no Temperature Compensation? D
CBI1235A???????? DC-UPS Out 12 Vdc 35A In 115-230-270 Vac – MODbus connection??????? D
CBI1235AP?????? DC-UPS Out 12 Vdc 35A In 115-230-270 Vac (parallel connection enabled)??? D
CBI1235AR?????? DC-UPS Out 12 Vdc 35A In 115-230-270 Vac – (Battery charging redundancy, MR220 module required)?????? D
Input 115–230-270 Vac

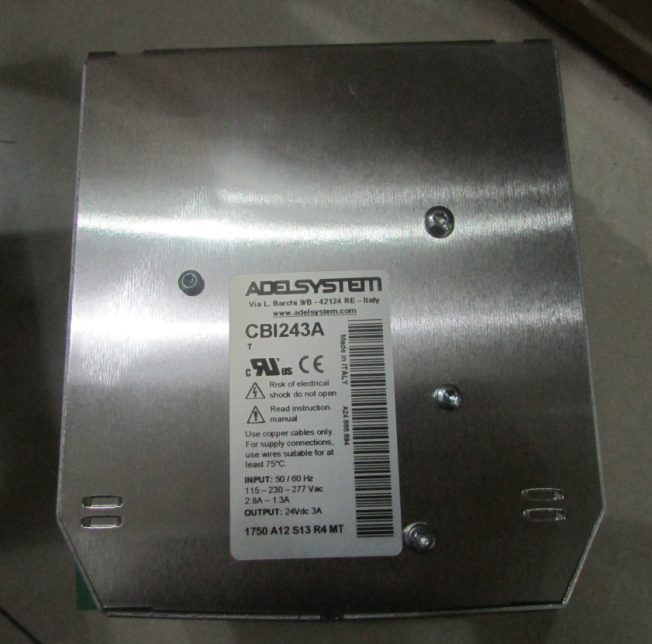

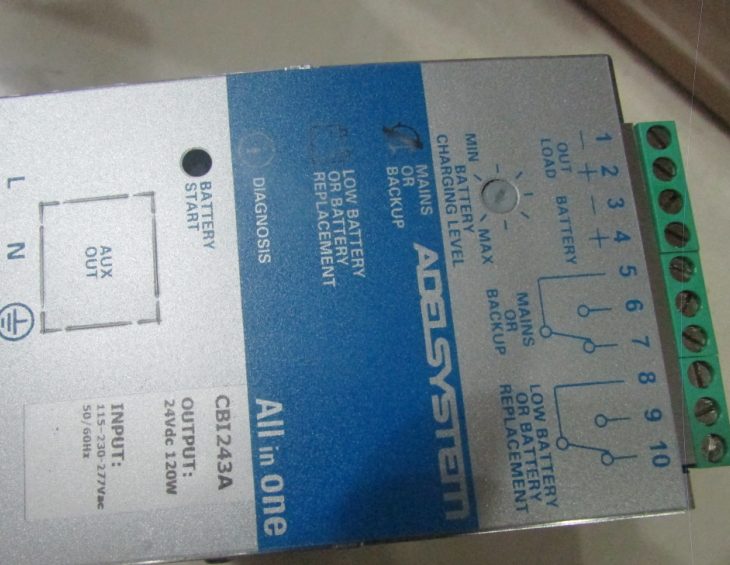

CBI243A? DC-UPS Out 24 Vdc 3A In 115-230-270 Vac, no NiCd battery, with Temperature Compensation? D
CBI243A-NiCd DC-UPS Out 24 Vdc 3A In 115-230-270 Vac, NiCd battery enabled, no Temperature Compensation???? D
CBI245A? DC-UPS Out 24 Vdc 5A In 115-230-270 Vac, no NiCd battery, with Temperature Compensation? D
CBI245ATB?????? DC-UPS Out 24 Vdc 5A In 115-230-270 Vac, no NiCd battery, with Temperature Compensation, Time Buffering 5′???? D
CBI245ATB1???? DC-UPS Out 24 Vdc 5A In 115-230-270 Vac, no NiCd battery, with Temp. Compensation, Time Buffering 0.5 min in Low batt; UPS Enabling?? D
CBI245A-NiCd DC-UPS Out 24 Vdc 5A In 115-230-270 Vac, NiCd battery enabled, no Temperature Compensation???? D
CBI2410A???????? DC-UPS Out 24 Vdc 10A In 115-230-270 Vac-No Battery start-up,No NiCd battery,Yes Temperature compensation?? D
CBI2410ATB???? DC-UPS Out 24 Vdc 10A In 115-230-270 Vac-No Battery start-up,No NiCd battery,Yes Temperature compensation,Time Buffering 5′????? D
CBI2410A-NiCd??????? DC-UPS Out 24 Vdc 10A In 115-230-270 Vac-No Battery start-up,Yes NiCd battery,No Temperature compensation???????? D
CBI2410A/S????? DC-UPS Out 24 Vdc 10A In 115-230-270 Vac-Yes Battery start-up,No NiCd battery,Yes Temperature compensation? D
CBI2420A???????? DC-UPS Out 24 Vdc 20A In 115-230-270 Vac – MODbus connection??????? D
CBI2420AP?????? DC-UPS Out 24 Vdc 20A In 115-230-270 Vac (parallel connection enabled)??? D
CBI2420AR?????? DC-UPS Out 24 Vdc 20A In 115-230-270 Vac – (Battery charging redundancy, MR220 module required)?????? D
Input 115–230-270 Vac
CBI485A? DC-UPS Out 48 Vdc 5A In 115-230-270 Vac-No Battery start-up,No NiCd battery,Yes Temperature compensation????? D
CBI485A-NiCd DC-UPS Out 48 Vdc 5A In 115-230-270 Vac-No Battery start-up, Yes NiCd battery,NoTemperature compensation???? D
CBI485A/S??????? DC-UPS Out 48 Vdc 5A In 115-230-270 Vac -Yes Battery start-up,No NiCD battery,Yes Temperature compensation?? D
CBI4810A???????? DC-UPS Out 48 Vdc 10A In 115-230-270 Vac – MODbus connection??????? D
CBI4810AP?????? DC-UPS Out 48 Vdc 10A In 115-230-270 Vac (parallel connection enabled)??? D
CBI4810AR?????? DC-UPS Out 48 Vdc 10A In 115-230-270 Vac – (Battery charging redundancy, MR220 module required)?????? D
Input 115–230-270 Vac
CBI2801224A? DC UPS Out 12-24 Vdc(selectable)280W In:115-230-277Vac Modbus??? D
Input 230 – 400 – 500 Vac
CBI2801224B? DC UPS Out 12-24 Vdc(selectable)280W In:230-400-500Vac Modbus??? D
Accessories for CBI
RTCONN? Connector for position 5 (Start from battery) with Two Wires (2 m)
RJTEMP451????? Temperature compensation probe with connector 1m (For all CBI models except for CBI280)
RJTEMP453????? Temperature compensation probe with connector 3m (For all CBI models except for CBI280)
RJTEMP111????? Temperature compensation probe with RJ11 connector 1m (Specific for CBI2801224A and B)
RJTEMP113????? Temperature compensation probe with RJ11 connector 3m (Specific for CBI2801224A and B)
ERJ.CBI.004???? Paralleling Cable Connector RJ45/RJ45 1m (Suitable for CBI1235A,2420A,4810A and for Modbus connection on CBI280)
Demo Kit
CBI demo Kit??? Demonstrative panel composed of CBI1210A and Batt1.2 for Show room
Input 400? Vac
UPS2410B???????? DC-UPS, 400Vac in, 10A 24 Vdc out ?????? D
UPS2410B/RS? DC-UPS, 400Vac in, 10A 24 Vdc out – RS232??? D
PSM
Switching power supplies and Battery Charger – Input 115–230 Vac
PSM123A Out Load 13.8 V? 3A; Battery 13.3; 0.1A?????? D
PSM241A Out Load? 24 V? 1.5 A; Battery 27 V ; 0.1A? D
UPL
Switching power supplies and Battery Charger – Input 115–230 Vac
UPL5512A???????? Out Load 13.8 V? 4 A; Battery 13.4 ; 0.23A?? D
UPL10012A????? Out Load 13.8 V? 6A; Battery 13.3; 0.5A?????? D
UPL5524A???????? Out Load 27.6 V; 2A; Battery 26.5; 0.16A??????? D
UPL10024A????? Out Load 27.6 V 3A; 27.V; 0.5A??????? D
Product group 4?????? Battery Charger
CB
CB – Battery chargers. They Test and Recharge the battery Input 115–230-270 Vac
CB123A??? Battery Charger 3 Level Out 12 Vdc 3A In 115-230-270 Vac?? D
CB123A/48?????? Battery Charger 3 Level Out 12 Vdc 3A In 48 Vdc D
CB1210A Battery Charger 3 Level Out 12 Vdc 10A In 115-230-270 Vac D

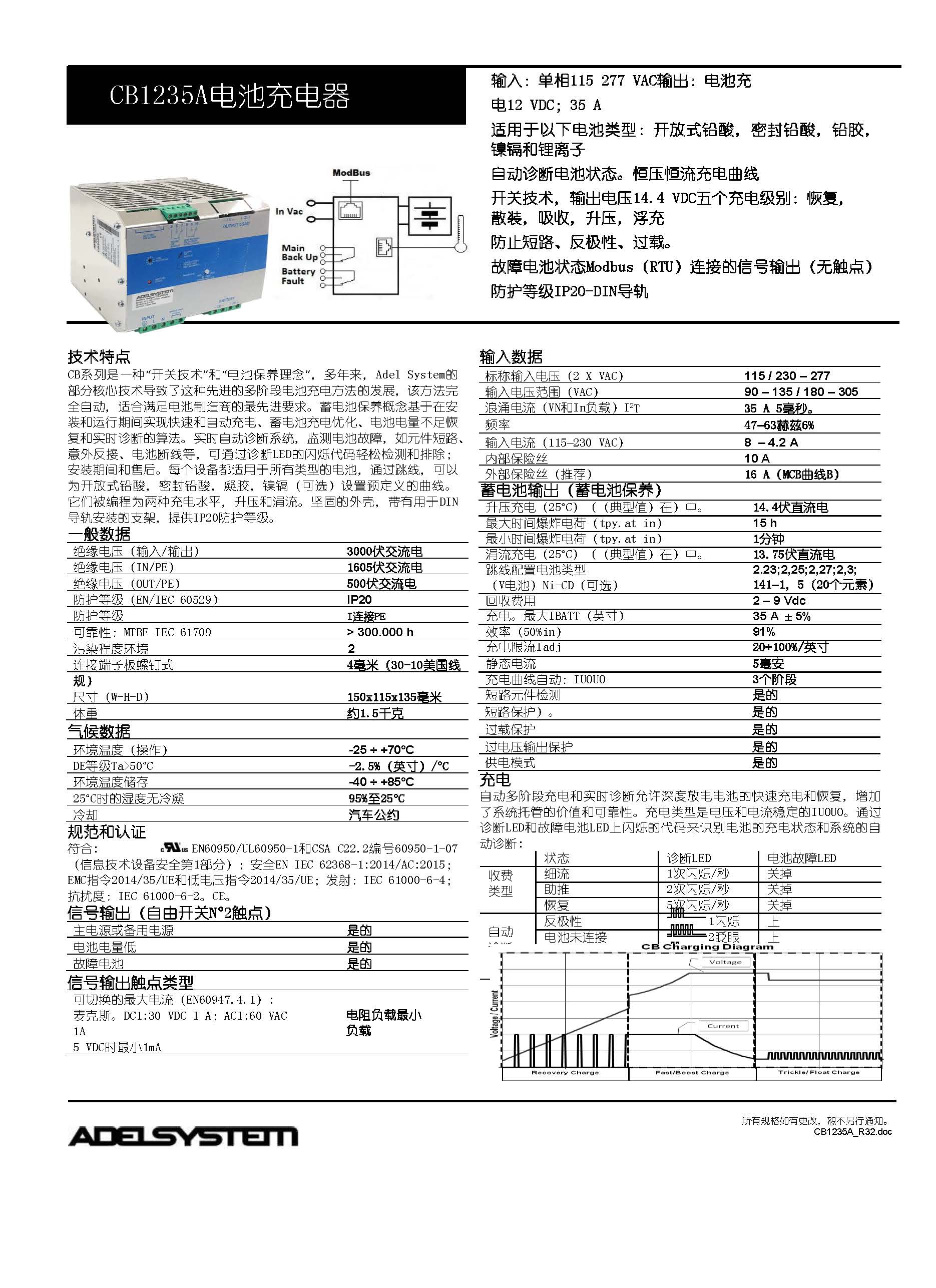

CB1235A Battery Charger 3 Level Out 12 Vdc 35A In 115-230-270 Vac D
CB243A??? Battery Charger 3 Level Out 24 Vdc 3A In 115-230-270 Vac?? D
CB245A??? Battery Charger 3 Level Out 24 Vdc 5A In 115-230-270 Vac?? D
CB2410AC??????? Battery Charger 3 Level Out 24 Vdc 10A In 115-230-270 Vac D
CB2420A Battery Charger 3 Level Out 24 Vdc 20A In 115-230-270 Vac D
CB363A??? Battery Charger 3 Level Out 36 Vdc 3A In 115-230-270 Vac?? D
CB12245A??????? Battery Charger 4 Level Out 12-24 Vdc(selectable)120W In:115-230-277Vac??????? D
Product group 5?????? Battery Bank
VRLA
Enclosure + Battery
BATT 123 12 Vdc Battery 3.2Ah ( N.1 battery+Battery Chest)??????? P
BATT 123DIN?? 12 Vdc Battery 3.2Ah ( N.1 battery+Battery Chest) with DIN clip? D
BATT 127 12 Vdc Battery 7.2Ah ( N.1 battery+Battery Chest)??????? P
BATT 127DIN?? 12 Vdc Battery 7.2Ah ( N.1 battery+Battery Chest) with DIN clip? D
BATT 1.2Ah????? 24 Vdc Battery 1.2Ah ( N.2 batteries+Battery Chest)???? P
BATT 1.2AhDIN??????? 24 Vdc Battery 1.2Ah ( N.2 batteries+Battery Chest) with DIN clip??????? D
BATT 3.2Ah????? 24 Vdc Battery 3.2Ah ( N.2 batteries+Battery Chest)???? P
BATT 3.2AhDIN??????? 24 Vdc Battery 3.2Ah ( N.2 batteries+Battery Chest) with DIN clip??????? D
BATT 7.2Ah????? 24 Vdc Battery 7.2Ah ( N.2 batteries+Battery Chest)???? P
BATT 7.2AhDIN??????? 24 Vdc Battery 7.2Ah ( N.2 batteries+Battery Chest) with DIN clip??????? D
Enclosure
BATTHOLDER123???? Battery chest for battery 12V/3.2Ah – without battery? P
BATTHOLDER123DIN?????? Battery chest for battery 12V/3.2Ah – without battery with DIN clip???? D
BATTHOLDER127???? Battery chest for battery 12V/7.2Ah – without battery? P
BATTHOLDER127DIN?????? Battery chest for battery 12V/7.2Ah – without battery with DIN clip???? D
BATTHOLDER1212? Battery chest for battery 12V/12Ah – without battery?? P
Small VRLA
Enclosure + Battery
BAT1.2VRLA???? 24 Vdc Battery 1.2Ah ( N.2 batteries+Battery Enclosure) DIN & Wall mount???????? D/P
BAT3.4VRLA???? 24 Vdc Battery 3.2Ah ( N.2 batteries+Battery Enclosure) DIN & Wall mount???????? D/P
BAT7.2VRLA???? 24 Vdc Battery 7.2Ah ( N.2 batteries+Battery Enclosure) DIN & Wall mount???????? D/P
BAT12VRLA????? 24 Vdc Battery 12Ah ( N.2 batteries+Battery Enclosure) Wall mount??? P
Enclosure
BTH1.2VRLA??? 24 Vdc Battery Enclosure for N.2 batteries 12V/1.2Ah – without battery, DIN & Wall mount??????? D/P
BTH3.4VRLA??? 24 Vdc Battery Enclosure for N.2 batteries 12V/3.4Ah – without battery, DIN & Wall mount??????? D/P
BTH7.2VRLA??? 24 Vdc Battery Enclosure for N.2 batteries 12V/7.2Ah – without battery, DIN & Wall mount??????? D/P
BTH12VRLA???? 24 Vdc Battery Enclosure for N.2 batteries 12V/12Ah – without battery, Wall mount?? P
SFP
SFP544???? Panel for EN54.4 field. Can contain batteries VRLA from 1.2 up to 18Ah and all range of DC UPS “CBI”?????? P
Product group 6?????? Interfaces
MR
Decoupler
MR220???? Decoupling Module? In – Out? 10 – 60 Vdc 25A??????? D
Product group 7?????? Multimediality
Power Bus
PBI122???? Gate Way (Web Server for connection to Modbus ADEL system)?? D/P
